Express

Purpose

This article gives an overview of Express and how it can be used to build complex HTTP server applications based on the Node.js http module.

A simple Express server

Let's create a simple Express server with Node:

1
2
3
4
5
6
7
const http = require("http");
const express = require("express");
const app = express();

http.createServer(app).listen(3000, () => {
  console.log("Express server listening on port 3000");
});

So, what is app here? The http.createServer() function is part of the Node.js http module. Inspection of the Node.js documentation shows that createServer() expects a request listener as its argument. This is a function that takes two arguments: a request object and a response object, named here respectively: req and res.

1
2
3
function requestListener(req, res) {
  // ...
}

Therefore, app must be (and actually is) a request listener function:

1
2
3
function app(req, res) {
  // ...
}

But actually, app is far more than that. The Express package adds number of properties to the app function. Remember that a JavaScript function is in essence a JavaScript object, although one of a special type. You can add properties to any JavaScript object, including to function objects, such as app here.

Below is a simplified representation of the internals of Express:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
// Simplified internal implementation of the 'express' Node module

function createApplication() {
  const app = function(req, res) {
    // ...
  };

  app.use = function use(...middleWareFns) {
    // adds middleware shared across all routes
  };

  app.get = function get(path, ...middleWareFns) {
    // adds middleware for the GET method for a specific route
  };

  // etc.

  return app;
}

module.exports = createApplication;

A real world Express application

Figure 1 below shows a real world (though trimmed down) example of an Express application (this one is taken from the Hyfer application). We will dissect this code snippet in the next sections.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
const http = require("http");
const express = require("express");
const compression = require("compression");
const bodyParser = require("body-parser");
const cookieParser = require("cookie-parser");
const serveStatic = require("serve-static");

const app = express();

// shared middleware for all routes
app.use(bodyParser.json());
app.use(cookieParser());
app.use(serveStatic("./public"));

// route specific request handlers
app.get("/api/timeline", getTimeLine);
app.get("/api/user/:id", isAuthenticated, getUser);

http.createServer(app).listen(3000, () => {
  console.log("Express server listening on port 3000");
});

// example request handler implementations

function getTimeLine(req, res) {
  //...
  res.json(timeline);
}

function getUser(req, res) {
  //...
  res.json(user);
}

function isAuthenticated(req, res, next) {
  //...
  if (authenticated) {
    next();
  } else {
    // unauthorized
    res.sendStatus(401);
  }
}

Listing 1: A real world Express application

Middleware

In the Express documentation the term middleware is used to describe a special type of request handler. It has the following function signature:

1
2
3
function middlewareFn(req, res, next) {
  // ...
}

Note that a third parameter, next is added to the function signature. This next parameter is a function that takes no parameters.

Express constructs a pipeline of middleware functions through which an incoming HTTP request (req) is routed and an outgoing HTTP response (res) is sent back.

Each middleware function is expected to either pass on the request to the next function in the pipeline, i.e. by calling next(), or send a response itself. In the latter case, handling of the request ends there and then. Otherwise the next middleware function in the pipeline is called.

Middleware functions can (and usually do) make change to the request object, the response object or both, before passing them on. In fact, this is the main purpose of middleware: adding functionality and information as the request progresses through the pipeline.

Ultimately there must be some middleware function in the pipeline that sends a response. If not, the client will time out with an error.

Figure 1 below illustrates the middleware configuration of Listing 1 above.

Middleware Pipeline

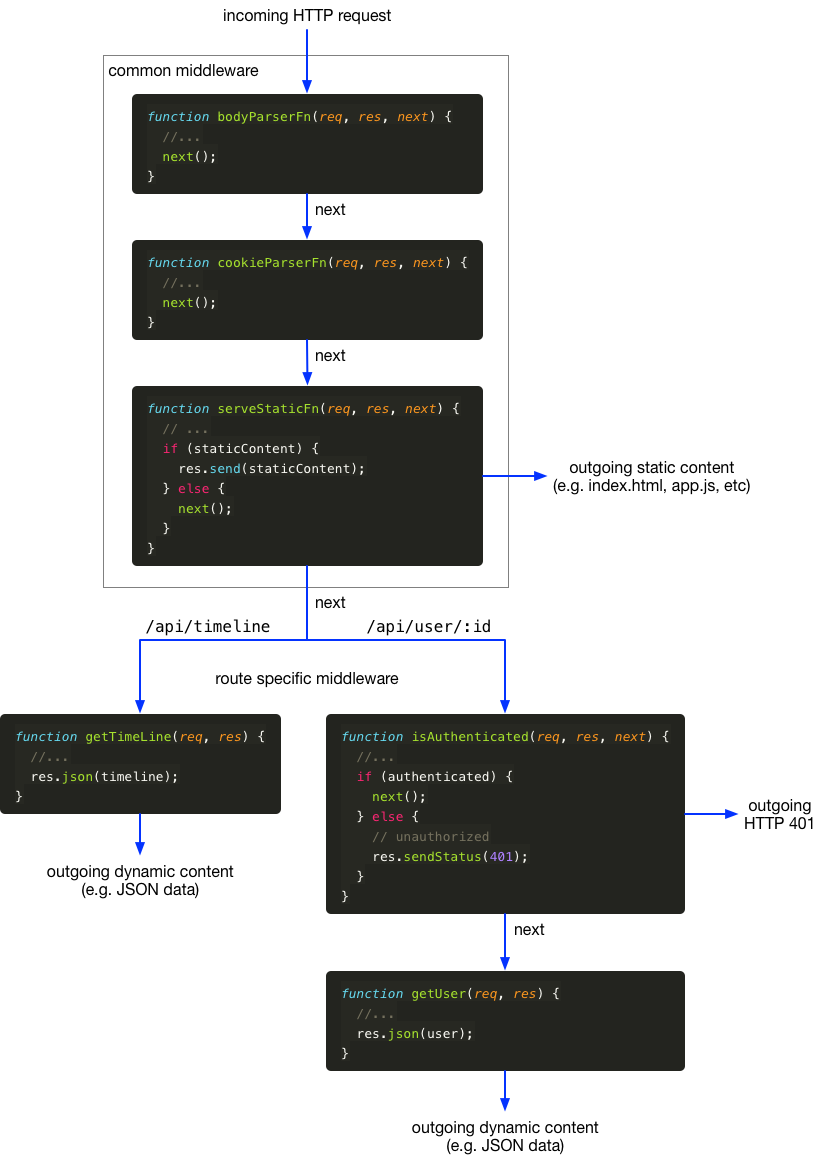

Figure 1. Express middleware pipeline representation of Listing 1 code.

All incoming requests are routed through the common middleware functions added and configured through app.use(). Next, the requests are routed to middleware functions based on the request method (e.g. a GET) and request path (e.g. /api/timeline). These functions are usually added and configured through app.get(), app.post(), etc.

Application specific routes are ultimately handled by request handlers at leaf nodes of the pipeline. Because they are leaf nodes, they usually leave out the next parameter, as there is no 'next' to pass the request on to.

Conditional middleware

In Listing 1 and Figure 1 there are two middleware functions that conditionally call next().
