VSCode Tips

Download and install the appropriate version of VSCode for your operating system from the VSCode web site.

VSCode can be extended with extensions. There are three that we recommend you install from day 1.

1. Code Spell Checker. We fully understand that you guys sometimes have difficulty with the correct English spelling when choosing names for variables and functions in your JavaScript programs. That is nothing to be ashamed of, but why not get some help from a handy extension?

2. ESLint. This extension can check your JavaScript code for obvious errors, such as undefined variables, unused variables, etc.

3. Prettier - Code formatter. Prettier is an code formatter that enforces a consistent style by parsing your code and re-printing it with its own rules that take the maximum line length into account, wrapping code when necessary.

   If you have any other code formatter extensions installed, e.g., Beautify, be sure to remove them as they may conflict with Prettier.

4. open in browser. This extension is handy during the HYF JavaScript lessons. It allows you to quickly open an HTML file in the browser directly from VSCode.

5. Live Server. Launch a development local Server with live reload feature for static & dynamic pages.

6) Bracket Pair Colorizer. An extension for colorizing matching brackets.

Installation instructions

1. Start up VSCode.

2. Press the button in the area in the left margin (called the Activity Bar), as shown below:

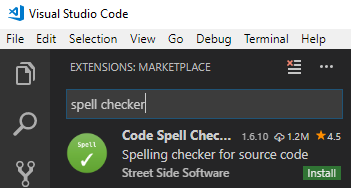

3. In the input field in the upper left corner, type code spell checker as pictured here:



4. Press the green install button of Code Spellchecker.

5. Install the remaining extensions by repeating steps 3 and 4, by typing the names of the extensions:

   • ESLint
   • Prettier - Code formatter
   • open in browser
   • Live Server
   • Bracket Pair Colorizer
6. When the final extension has finished installing you will notice that the green install button changes to a blue reload button. Press this button to reload VSCode and activate the newly installed extensions.
7. You now need to install a global Node package to support ESLint. Open a terminal window in VSCode by selecting View, Integrated Terminal from the menu bar.

8. A terminal window opens in the lower half of the VSCode window. In this window, type the command below (on Linux and MacOS systems you may need to prefix this command with sudo, e.g. sudo npm ...):

   npm install -g eslint-cli

We recommend that you apply a couple of changes to the default settings of VSCode to help you create well-formatted JavaScript code. Follow these steps:

1. Press the cog-wheel icon in the lower-left corner of the VSCode screen, as indicated here:



   If you see a blue encircled number, e.g. 1, on this button this means that you have an outstanding VSCode update awaiting to be installed. VSCode currently has a monthly update cycle. It is best to install updates at your earliest convenience.

2. From the menu, select Settings.

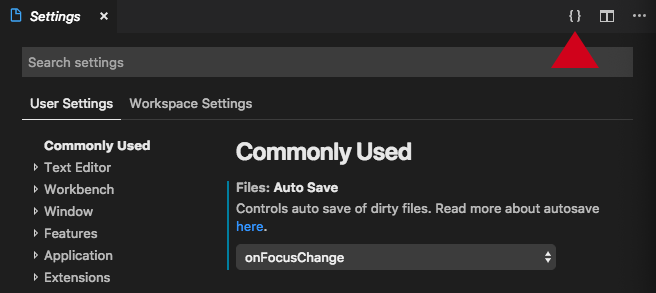

3. From the settings panel, with the User Settings tab highlighted, click on the { } button, as indicated by the red triangle in the figure below.



4. From the resulting menu, select Open settings.json.

5. Copy the content shown below and paste it over (i.e. replace) the existing content in the USER SETTINGS panel in the right-hand half of the screen.

   1
   2
   3
   4
   5
   6
   7
   8
   9
   10
   11
   12
   13
   14
   15
   16
   /// Place your settings in this file to overwrite the default settings
   {
     "editor.detectIndentation": false,
     "editor.formatOnSave": true,
     "editor.minimap.enabled": false,
     "editor.renderIndentGuides": true,
     "editor.tabSize": 2,
     "editor.codeActionsOnSave": {
       "source.fixAll": true
     },
     "eslint.autoFixOnSave": true,
     "files.autoSave": "onFocusChange",
     "prettier.printWidth": 100,
     "prettier.singleQuote": true,
     "prettier.trailingComma": "all"
   }

6. Close the Settings tabs.

By default, a VSCode installation on Window uses PowerShell for the Integrated Terminal. To change this to Git Bash, follow these steps:

1. Press the key combination Ctrl-Shift-p to open the VSCode Command Pallette.
2. Type the words: select default
3. From the drop-down menu, select Terminal: Select Default Shell
4. A new drop-down menu will appear. From this menu, select Git Bash.

You’ll get the most out of VSCode if you organise your work in folders, say a folder for each week in the JavaScript module.

(Later in the course you will be “cloning” Git repositories into local folders as the basis for your homework or projects.)

To start work with VSCode in particular folder, start VSCode and open the relevant folder: from the menu, select File, Open Folder. VSCode will now open this folder to be your "project folder", until you close VSCode or open another folder.

Make it a habit in VSCode to always open the folder that contains the project you are working on, rather than individual files in that folder.

In the figure below the folder named JavaScript2 was opened in VSCode. The directory tree for that folder in shown in the Explorer panel. The folder name JAVASCRIPT2 is displayed in uppercase in the title bar of the directory tree panel.

You are now ready to start adding your first JavaScript file.

1. Open the folder where you will keep your working files, for instance hyf-javascript1.

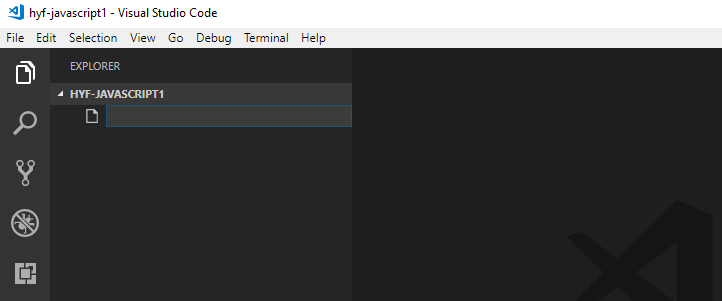

2. Right-click in an empty space in the EXPLORER window and select New File from the context menu. You will see the following:

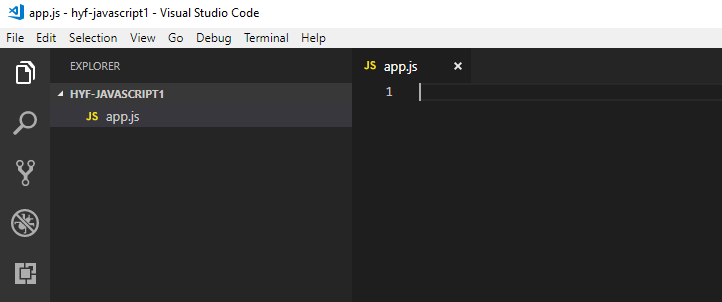

3. Type a file name in the edit box, e.g. app.js and press Enter. This will add a file apps.js to your working folder and open an editor tab for the newly created file.

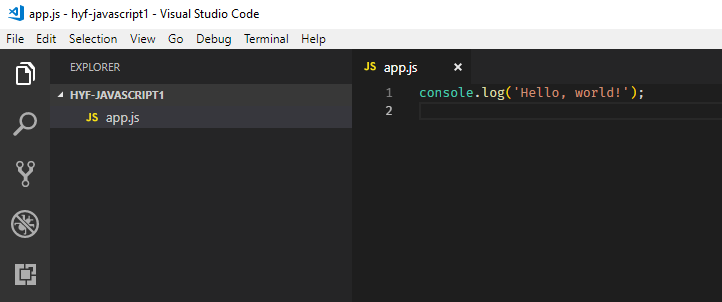

5) Start typing your JavaScript code in the new file.

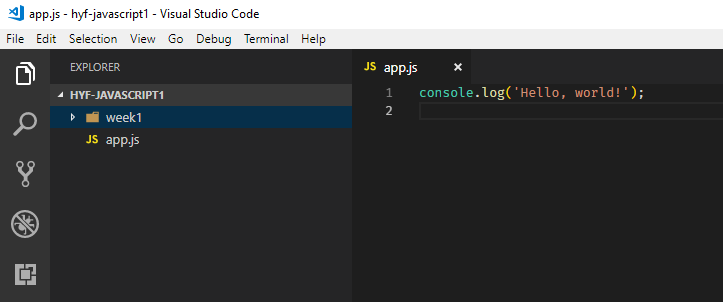

6) You can also create subfolders in EXPLORER panel. Right-click in an empty space in the EXPLORER window and select New Folder from the context menu, for instance week1.

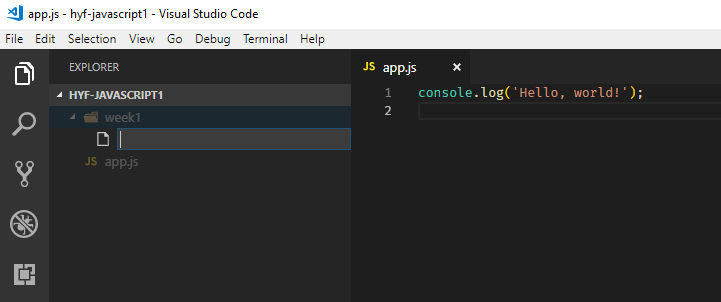

7) To create a new file in the subfolder, right-click on the subfolder and type a file name in the input box.

8) Be on the watch out for coloured wavy underlines in your code. These are warnings from either ESLint or the Spell Checker that something might be wrong. If you see such wavy underlines, hover your mouse pointer over the underlined text and a tooltip will appear that explains what might be wrong. 9) You can also open the "problem" panel by selecting View, Problems from the menu to see any problems identified. 10) Pay attention also to the lower left part of the VSCode window, i.e. the status bar. It gives an indication of the number of errors and warnings issued. In the picture below there are zero errors, 7 warnings (usually from ESLint) and 14 informational messages (usually from the spell checker).

![Figure 4. Error, warning and message indicators](status-bar.png)

In the previous section we frequently referred you to the menu bar to select commands. As you get more proficient with VSCode you may want to inspect these menus a little closer and take note of the short-cut commands listed in their right margin. For example, the short-cut command for File, New is listed as Ctrl+N (press Ctrl and N keys simultaneously) on a Windows or Linux PC and ⌘N on a Mac.

Here are some short-cut commands that you will use many times a day and that we recommend you familiarise yourself with from day 1:

• Format Document. This command reformats your JavaScript file in a generally accepted standard format, using proper indenting, proper use of spaces, placing of curly braces and more. A neatly formatted document helps you to better understand your own code and your teachers, mentors and fellow students will love your for it too when they review your work.

  With VSCode at your finger tips there is no longer any excuse for submitting poorly formatted homework!

• Search. Search for specified text.

• Replace. Replace specified text by some other text.

  In the figure below the Replace pop-up window is shown. The Search pop-up is similar, but with one input field only.



  • The Aa button activates the Match Case option.
  • The Ab| button matches Whole Words Only.
  • The .* button allow you to search using regular expressions, which you may encounter in later modules as an advanced JavaScript programming topic.
  • The c-b button next to the second input field replaces the next occurrence of the matched text.
  • The ab-ac button replaces all occurrences of the matched text.
  • The left and right arrows move the cursor to the previous and next match.
  • To get rid of the pop-up press Esc or press the x button.

• Rename Symbol. This command renames all occurrences of a JavaScript variable or function name. To do so, move the text cursor to the variable or function name and press F2. A small pop-up window will appear in which you can type a new name. Press Enter to finalise the change or Esc to cancel it.

• Open an Integrated Terminal window. We already covered this when we mentioned the View, Integrated Terminal menu command.

If your JavaScript program is contained in a single file the easiest way to run and examine your code is the start straight in VSCode.

1. Press the F5 function key to start the VSCode debugger.

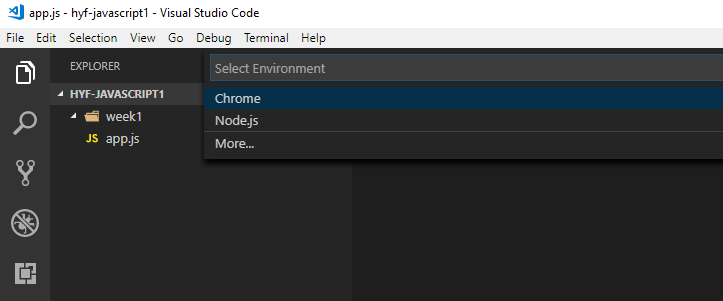

2. You will prompted to select an environment. Choose Node.js as show below.



This starts your program in the VSCode debugger.

Placing break points and inspecting variables

This is covered in class.

Further information

Please note that VSCode is actively being developed. At present there is a monthly release cycle, so don't be surprised when you are prompted once a month to update to the latest version. We advise you to update when prompted (naturally, not when you are in the middle something that you don't want interrupted).

You can find detailed information about VSCode at the VSCode web site.
